SHURE 6 PIECE DRUM MICS - $575 (las cruces)
QR Code Link to This Post
NO TRADES

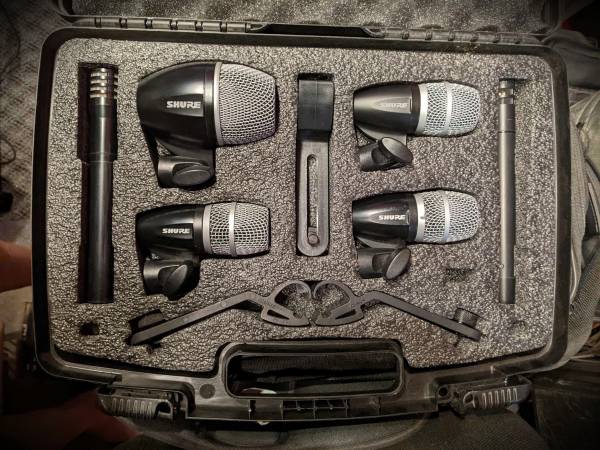

FEATURES
Three PG56 snare/tom microphones
One PG52 kick drum microphone
Two PG81 overhead instrument microphones
Three A50D drum mounts

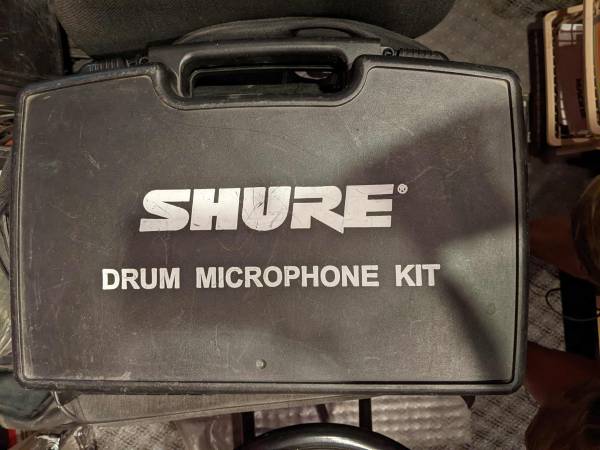

One durable carrying case
PG56:
• Microphone Type: Dynamic (moving coil)
• Polar Pattern: Cardioid (unidirectional)
• Frequency Response: 50Hz-15kHz
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of microphone output connector
• Output Impedance (at 1000 Hz): 200 ohms
• Sensitivity (at 1000 Hz): -56 dBV/Pa, (1.6 mV), 1 Pascal=94 dB SPL
• Electromagnetic Hum Sensitivity: 26 dB equivalent SPL in a 1 millioersted field (60 Hz)
• Connector: Three-pin professional audio connector (male XLR type)
PG52:
• Microphone Type: Dynamic (moving coil)
• Polar Pattern: Cardioid (unidirectional)
• Frequency Response: 30Hz-13kHz
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of microphone output connector
• Output Impedance (at 1000 Hz): 300 ohms
• Sensitivity (at 1000 Hz): -55 dBV/Pa, (1.8 mV), 1 Pascal=94 dB SPL
• Electromagnetic Hum Sensitivity: 25 dB equivalent SPL in a 1 millioersted field (60 Hz)
• Connector: Three-pin professional audio connector (male XLR type)
PG81:
• Microphone Type: Condenser (electret bias)
• Polar Pattern: Cardioid (unidirectional), symmetrical about axis
• Frequency Response: 40 Hz-18kHz
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of microphone output connector
• Output Impedance (at 1000 Hz): 600 ohms
• Sensitivity (at 1000 Hz): -48 dBV/Pa, (4.0 mV), 1 Pascal = 94 dB SPL
• Electromagnetic Hum Sensitivity: -7 dB equivalent SPL in a 1 millioersted field (60 Hz)
• Switch: Built-in On/Off switch
• Recommended Input Load Impedance: 800 ohms minimum
• Output Clipping Level (1 kHz, 1 % THD) 2000 ohm load: 13 dBV (0.22 V) (phantom), -17 dBV (0.14 V) (battery)
• Maximum SPL (2000 ohm load): 131 dB (phantom), 127 dB (battery)
• Self-Noise (Equivalent SPL): 20 dB typical, A-weighted
• Dynamic Range (maximum SPL, 2k ohm load, to A-weighted noise level): 111 dB (phantom); 107 dB (battery)
• Signal-to-Noise Ratio: 68 dB at 94 dB SPL
• Power: (Phantom Power): Supply Voltage: 11 to 52 Vdc, Current Drain: 2.0 mA max at 52 Vdc, Maximum External Voltage Applied to Pins 2 and 3 with respect to Pin 1: +52 Vdc Reverse polarity protected to: 100 Vdc; (Battery Power): Recommended: 1.5 V alkaline AA size (NEDA 15A) Life: up to 10,000 hours
• Connector: Three pin professional audio connector (male XLR type)
